Client Connection Tab - NEW! 🚀

1755

Warning!

The search bar at the top of the result list does not support blanks and these special characters: ' " |


To configure a Client Connection, follow these steps:

  1. Go to Actors → Edit Actor → Client Connection tab.
  2. Click the New Client Connection button.

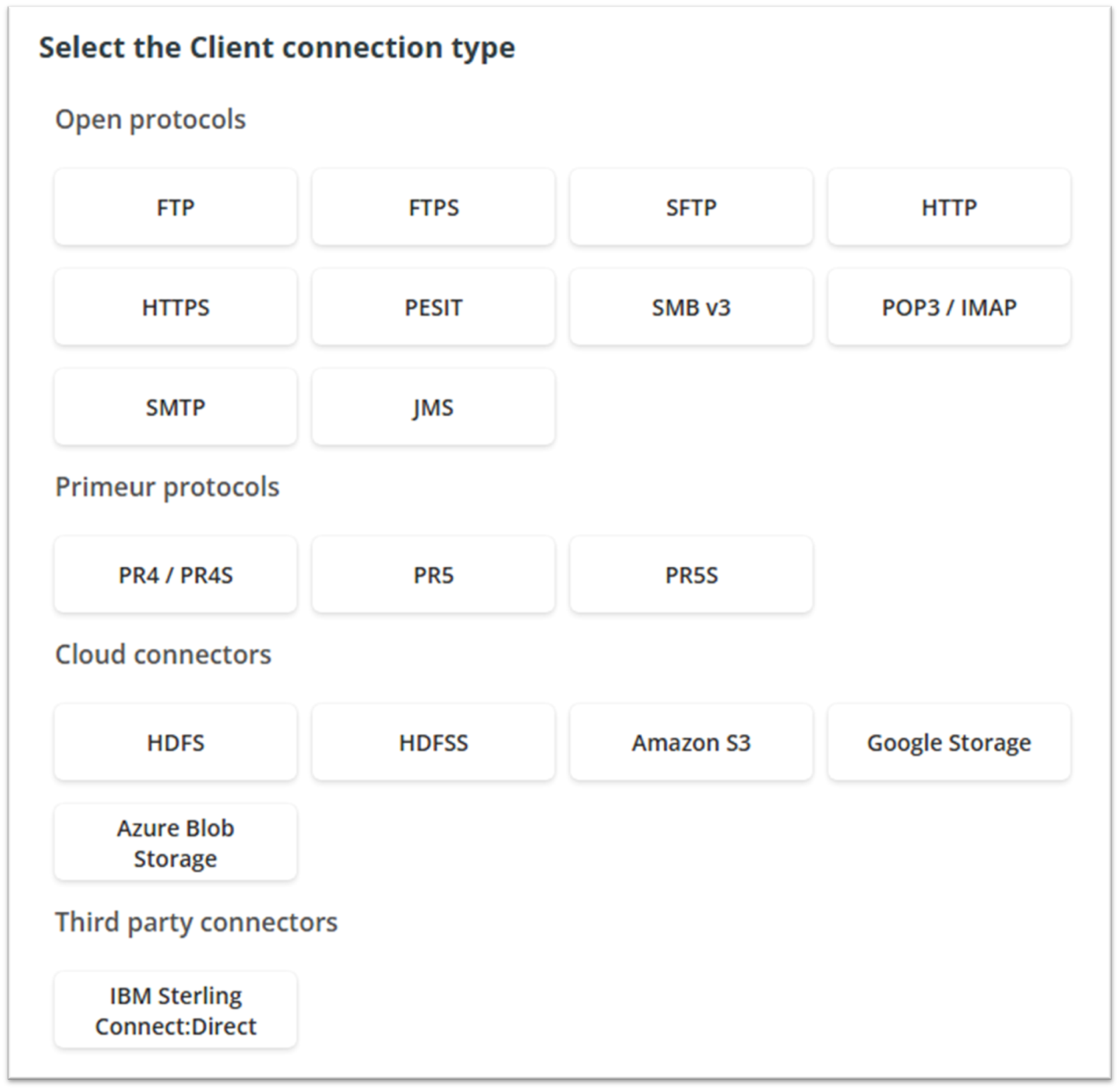

  3. In the dialog window, select the protocol type.
  1. The dialog window will load several new fields – refer to the following sections for a detailed explanation of each field.

Open protocols

Primeur protocols

Cloud connectors

Third party connectors

Client Connection Appendixes

IBM JCE FIPS v1.8 algorithms

The supported Fips Compliance algorithms are:

Ciphers

AES with modes ECB, CBC, OFB, and CFB8, CFB128 and GCM
DESede(TripleDES) with modes ECB, CBC, OFB, CFB8 and CFB64
SA with PKCS#1 padding

Signature

SHA224withRSA
SHA256withRSA
SHA384withRSA
SHA512withRSA
RSA-PSS
SHA256withDSA
SHA224withECDSA
SHA256withECDSA
SHA384withECDSA
SHA512withECDSA

Signature verification

SHA1withRSA
SHA224withRSA
SHA256withRSA
SHA384withRSA
SHA512withRSA
RSA-PSS
SHA1withDSA
SHA224withDSA
SHA256withDSA
SHA1withECDSA
SHA224withECDSA
SHA256withECDSA
SHA384withECDSA
SHA512withECDSA
ECDSA with P-192, P-224, P-256, P-384, P-521 curves

Key agreement

DiffieHellman
EC Diffie-Hellman (P-224, P-256, P-384, P-521 curves)

Key (pair) generation

DSA
AES
TripleDES
HmacSHA1
HmacSHA224
HmacSHA256
Hmac384
Hmac512
RSA
ECDSA (P-224, P-256, P-384, P-521 curves)
DiffieHellman

Message authentication code (MAC)

HmacSHA1
HmacSHA224
HmacSHA256
HmacSHA384
HmacSHA512

The keys must be at least 112 bits.

Message digest

SHA-1
SHA-256
SHA-384
SHA-512
MD5

Algorithm parameters generator

DiffieHellman
DSA

Algorithm parameters

AES
DiffieHellman
TripleDES
DSA
ECDSA with P-224, P-256, P-384, P-521 curves

Key factory

DiffieHellman
DSA
RSA
ECDSA

Secret Key factory

AES
TripleDES

Certificate

X.509

Random number generation

HashDRBG
SHA256DRBG
SHA512DRBG

Key generation

AES - 128, 192 or 256 bits
Triple-DES - 192 bits three key Triple-DES key
RSA - 2048 or 3072 modulus size
DSA - L=2048, N=256 or L=3072, N=256 bits
ECDSA - P-224, P-256, P-384, P-521 curves

Key agreement

Diffie-Hellman - 2048 bits
EC Diffie-Hellman - P-224, P-256, P-384, P-521 curves

Encryption and decryption

AES (ECB, CBC, OFB, CFB8, CFB128 and GCM modes) - 128, 192, or 256 bits
Triple-DES (ECB, CBC, CFB8, CFB64 and OFB modes) - 192 bits Triple-DES key
Two key Triple-DES (decryption only - ECB, CBC, CFB8, CFB64 and OFB modes) - 192 bits two key Triple-DES

Signature generation

RSA – 2048 or 3072 bits
DSA (SHA-256) – 2048 or 3072 bits
ECDSA (SHA-224, SHA-256, SHA-384 and SHA-512) - P-224, P-256, P-384, P-521 curves

Signature verification

RSA – 1024, 2048, or 3072 bits
DSA – (SHA-1, SHA-224, SHA-256) – 1024, 2048, or 3072 bits
ECDSA (SHA-1, SHA-224, SHA-256, SHA-384 and SHA-512) - P-192, P-224, P-256, P-384, P-521 curves

Message authentication

HMAC with SHA-1, SHA-224, SHA-256, SHA-384 and SHA-512 - at least 112 bits

Message digest

SHA-1, SHA-224, SHA-256, SHA-384 and SHA-512

Accepted Cipher Suites

List of cipherSuites accepted to establish a SSL connection. Possible values:

Value
TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA384
TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA384
TLS_RSA_WITH_AES_256_CBC_SHA256
TLS_ECDH_ECDSA_WITH_AES_256_CBC_SHA384
TLS_ECDH_RSA_WITH_AES_256_CBC_SHA384
TLS_DHE_RSA_WITH_AES_256_CBC_SHA256
TLS_DHE_DSS_WITH_AES_256_CBC_SHA256
TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA
TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA
TLS_RSA_WITH_AES_256_CBC_SHA
TLS_ECDH_ECDSA_WITH_AES_256_CBC_SHA
TLS_ECDH_RSA_WITH_AES_256_CBC_SHA
TLS_DHE_RSA_WITH_AES_256_CBC_SHA
TLS_DHE_DSS_WITH_AES_256_CBC_SHA
TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA256
TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA256
TLS_RSA_WITH_AES_128_CBC_SHA256
TLS_ECDH_ECDSA_WITH_AES_128_CBC_SHA256
TLS_ECDH_RSA_WITH_AES_128_CBC_SHA256
TLS_DHE_RSA_WITH_AES_128_CBC_SHA256
TLS_DHE_DSS_WITH_AES_128_CBC_SHA256
TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA
TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA
TLS_RSA_WITH_AES_128_CBC_SHA
TLS_ECDH_ECDSA_WITH_AES_128_CBC_SHA
TLS_ECDH_RSA_WITH_AES_128_CBC_SHA
TLS_DHE_RSA_WITH_AES_128_CBC_SHA
TLS_DHE_DSS_WITH_AES_128_CBC_SHA
TLS_ECDHE_ECDSA_WITH_RC4_128_SHA
TLS_ECDHE_RSA_WITH_RC4_128_SHA
SSL_RSA_WITH_RC4_128_SHA
TLS_ECDH_ECDSA_WITH_RC4_128_SHA
TLS_ECDH_RSA_WITH_RC4_128_SHA
TLS_ECDHE_ECDSA_WITH_3DES_EDE_CBC_SHA
TLS_ECDHE_RSA_WITH_3DES_EDE_CBC_SH
SSL_RSA_WITH_3DES_EDE_CBC_SHA
TLS_ECDH_ECDSA_WITH_3DES_EDE_CBC_SHA
TLS_ECDH_RSA_WITH_3DES_EDE_CBC_SHA
SSL_DHE_RSA_WITH_3DES_EDE_CBC_SHA
SSL_DHE_DSS_WITH_3DES_EDE_CBC_SHA
SSL_RSA_WITH_RC4_128_MD5
TLS_EMPTY_RENEGOTIATION_INFO_SCSV
LS_DH_anon_WITH_AES_256_CBC_SHA256
TLS_ECDH_anon_WITH_AES_256_CBC_SHA
TLS_DH_anon_WITH_AES_256_CBC_SHA
TLS_DH_anon_WITH_AES_128_CBC_SHA256
TLS_ECDH_anon_WITH_AES_128_CBC_SHA
TLS_DH_anon_WITH_AES_128_CBC_SHA
TLS_ECDH_anon_WITH_RC4_128_SHA
SSL_DH_anon_WITH_RC4_128_MD5
TLS_ECDH_anon_WITH_3DES_EDE_CBC_SHA
SSL_DH_anon_WITH_3DES_EDE_CBC_SHA
TLS_RSA_WITH_NULL_SHA256
TLS_ECDHE_ECDSA_WITH_NULL_SHA
TLS_ECDHE_RSA_WITH_NULL_SHA
SSL_RSA_WITH_NULL_SHA
TLS_ECDH_ECDSA_WITH_NULL_SHA
TLS_ECDH_RSA_WITH_NULL_SHA
TLS_ECDH_anon_WITH_NULL_SHA
SSL_RSA_WITH_NULL_MD5
SSL_RSA_WITH_DES_CBC_SHA
SSL_DHE_RSA_WITH_DES_CBC_SHA
SSL_DHE_DSS_WITH_DES_CBC_SHA
SSL_DH_anon_WITH_DES_CBC_SHA
SSL_RSA_EXPORT_WITH_RC4_40_MD5
SSL_DH_anon_EXPORT_WITH_RC4_40_MD5
SSL_RSA_EXPORT_WITH_DES40_CBC_SHA
SSL_DHE_RSA_EXPORT_WITH_DES40_CBC_SHA
SSL_DHE_DSS_EXPORT_WITH_DES40_CBC_SHA
SSL_DH_anon_EXPORT_WITH_DES40_CBC_SHA
TLS_KRB5_WITH_RC4_128_SHA
TLS_KRB5_WITH_RC4_128_MD5
TLS_KRB5_WITH_3DES_EDE_CBC_SHA
TLS_KRB5_WITH_3DES_EDE_CBC_MD5
TLS_KRB5_WITH_DES_CBC_SHA
TLS_KRB5_WITH_DES_CBC_MD5
TLS_KRB5_EXPORT_WITH_RC4_40_SHA
TLS_KRB5_EXPORT_WITH_RC4_40_MD5
TLS_KRB5_EXPORT_WITH_DES_CBC_40_SHA
TLS_KRB5_EXPORT_WITH_DES_CBC_40_MD5

Default Charset

Default charset used to convert the received text external file. Possible Values:

Value
X-CCSID-37
X-CCSID-256
X-CCSID-259
X-CCSID-273
X-CCSID-274
X-CCSID-275
X-CCSID-277
X-CCSID-278
X-CCSID-280
X-CCSID-281
X-CCSID-282
X-CCSID-284
X-CCSID-285
X-CCSID-290
X-CCSID-297
X-CCSID-367
X-CCSID-420
X-CCSID-423
X-CCSID-424
X-CCSID-425
X-CCSID-437
X-CCSID-500
X-CCSID-720
X-CCSID-737
X-CCSID-775
X-CCSID-803
X-CCSID-808
X-CCSID-813
X-CCSID-819
X-CCSID-833
X-CCSID-836
X-CCSID-838
X-CCSID-848
X-CCSID-849
X-CCSID-850
X-CCSID-851
X-CCSID-852
X-CCSID-855
X-CCSID-856
X-CCSID-857
X-CCSID-858
X-CCSID-859
X-CCSID-860
X-CCSID-861
X-CCSID-862
X-CCSID-863
X-CCSID-864
X-CCSID-865
X-CCSID-866
X-CCSID-867
X-CCSID-868
X-CCSID-869
X-CCSID-870
X-CCSID-871
X-CCSID-872
X-CCSID-874
X-CCSID-875
X-CCSID-878
X-CCSID-880
X-CCSID-897
X-CCSID-901
X-CCSID-902
X-CCSID-903
X-CCSID-905
X-CCSID-912
X-CCSID-914
X-CCSID-915
X-CCSID-916
X-CCSID-918
X-CCSID-920
X-CCSID-921
X-CCSID-922
X-CCSID-923
X-CCSID-924
X-CCSID-1004
X-CCSID-1006
X-CCSID-1008
X-CCSID-1009
X-CCSID-1025
X-CCSID-1026
X-CCSID-1027
X-CCSID-1040
X-CCSID-1041
X-CCSID-1042
X-CCSID-1043
X-CCSID-1046
X-CCSID-1047
X-CCSID-1051
X-CCSID-1088
X-CCSID-1089
X-CCSID-1097
X-CCSID-1098
X-CCSID-1100
X-CCSID-1112
X-CCSID-1114
X-CCSID-1122
X-CCSID-1123
X-CCSID-1124
X-CCSID-1125
X-CCSID-1127
X-CCSID-1129
X-CCSID-1130
X-CCSID-1131
X-CCSID-1132
X-CCSID-1133
X-CCSID-1137
X-CCSID-1140
X-CCSID-1141
X-CCSID-1142
X-CCSID-1143
X-CCSID-1144
X-CCSID-1145
X-CCSID-1146
X-CCSID-1147
X-CCSID-1148
X-CCSID-1149
X-CCSID-1153
X-CCSID-1154
X-CCSID-1155
X-CCSID-1156
X-CCSID-1157
X-CCSID-1158
X-CCSID-1159
X-CCSID-1160
X-CCSID-1161
X-CCSID-1162
X-CCSID-1163
X-CCSID-1164
X-CCSID-1167
X-CCSID-1168
X-CCSID-1250
X-CCSID-1251
X-CCSID-1252
X-CCSID-1253
X-CCSID-1254
X-CCSID-1255
X-CCSID-1256
X-CCSID-1257
X-CCSID-1258
X-CCSID-1275
X-CCSID-1280
X-CCSID-1281
X-CCSID-1282
X-CCSID-1283
X-CCSID-1284
X-CCSID-1285
X-CCSID-1287
X-CCSID-1288
X-CCSID-4899
X-CCSID-4909
X-CCSID-4971
X-CCSID-5012
X-CCSID-5104
X-CCSID-5123
X-CCSID-5210
X-CCSID-5346
X-CCSID-5347
X-CCSID-5348
X-CCSID-5349
X-CCSID-5350
X-CCSID-5351
X-CCSID-5352
X-CCSID-5353
X-CCSID-5354
X-CCSID-8482
X-CCSID-9044
X-CCSID-9048
X-CCSID-9049
X-CCSID-9061
X-CCSID-9238
X-CCSID-9447
X-CCSID-12712
X-CCSID-16804
X-CCSID-17248
X-CCSID-28709
X-CCSID-1048576 – corresponds to the CodePage 0 ASCII (compatibility SPAZIO)
X-CCSID-1114112 – corresponds to the CodePage 0 EBCDIC (compatibility SPAZIO)
Adobe-Standard-Encoding
BOCU-1
Big5
Big5-HKSCS
CESU-8
EUC-JP
EUC-KR
GB18030
GB2312
GBK
GB_2312-80
HZ-GB-2312
IBM-Thai
IBM00858
IBM01140
IBM01141
IBM01142
IBM01143
IBM01144
IBM01145
IBM01146
IBM01147
IBM01148
IBM01149
IBM037
IBM1026
IBM1047
IBM273
IBM277
IBM278
IBM280
IBM284
IBM285
IBM290
IBM297
IBM420
IBM424
IBM437
IBM500
IBM775
IBM850
IBM852
IBM855
IBM857
IBM860
IBM861
IBM862
IBM863
IBM864
IBM865
IBM866
IBM868
IBM869
IBM870
IBM871
IBM918
ISO-2022-CN
ISO-2022-CN-EXT
ISO-2022-JP
ISO-2022-JP-1
ISO-2022-JP-2
ISO-2022-KR
ISO-8859-1
ISO-8859-10
ISO-8859-13
ISO-8859-14
ISO-8859-15
ISO-8859-2
ISO-8859-3
ISO-8859-4
ISO-8859-5
ISO-8859-6
ISO-8859-7
ISO-8859-8
ISO-8859-9
JIS_X0201
JIS_X0212-1990
KOI8-R
KOI8-U
SCSU
Shift_JIS
TIS-620
US-ASCII
UTF-16
UTF-16BE
UTF-16LE
UTF-32
UTF-32BE
UTF-32LE
UTF-7
UTF-8
X-UTF-32BE-BOM
X-UTF-32LE-BOM
cp1363
cp851
hp-roman8
macintosh
windows-1250
windows-1251
windows-1252
windows-1253
windows-1254
windows-1255
windows-1256
windows-1257
windows-1258
windows-31j
x-Big5-HKSCS-2001
x-Big5-Solaris
x-EUC-TW
x-IBM1006
x-IBM1025
x-IBM1046
x-IBM1097
x-IBM1098
x-IBM1112
x-IBM1122
x-IBM1123
x-IBM1124
x-IBM1153
x-IBM1363
x-IBM1364
x-IBM1371
x-IBM1381
x-IBM1383
x-IBM1388
x-IBM1390
x-IBM1399
x-IBM300
x-IBM33722
x-IBM720
x-IBM737
x-IBM833
x-IBM834
x-IBM856
x-IBM867
x-IBM874
x-IBM875
x-IBM921
x-IBM922
x-IBM930
x-IBM933
x-IBM935
x-IBM937
x-IBM939
x-IBM942
x-IBM942C
x-IBM943
x-IBM943C
x-IBM948
x-IBM949
x-IBM949C
x-IBM950
x-IBM954
x-IBM964
x-IBM970
x-IBM971
x-IMAP-mailbox-name
x-ISCII91
x-ISO-2022-CN-CNS
x-ISO-2022-CN-GB
x-JIS0208
x-JIS7
x-JIS8
x-JISAutoDetect
x-Johab
x-LMBCS-1
x-MS932_0213
x-MS950-HKSCS
x-MS950-HKSCS-XP
x-MacArabic
x-MacCentralEurope
x-MacCroatian
x-MacCyrillic
x-MacDingbat
x-MacGreek
x-MacHebrew
x-MacIceland
x-MacRoman
x-MacRomania
x-MacSymbol
x-MacThai
x-MacTurkish
x-MacUkraine
x-PCK
x-SJIS_0213
x-UTF-16LE-BOM
x-UTF16_OppositeEndian
x-UTF16_PlatformEndian
x-UTF32_OppositeEndian
x-UTF32_PlatformEndian
x-UnicodeBig
x-compound-text
x-ebcdic-xml-us
x-euc-jp-linux
x-eucJP-Open
x-ibm-1047-s390
x-ibm-1125_P100-1997
x-ibm-1129_P100-1997
x-ibm-1130_P100-1997
x-ibm-1131_P100-1997
x-ibm-1132_P100-1998
x-ibm-1133_P100-1997
x-ibm-1137_P100-1999
x-ibm-1140-s390
x-ibm-1141-s390
x-ibm-1142-s390
x-ibm-1143-s390
x-ibm-1144-s390
x-ibm-1145-s390
x-ibm-1146-s390
x-ibm-1147-s390
x-ibm-1148-s390
x-ibm-1149-s390
x-ibm-1153-s390
x-ibm-1154_P100-1999
x-ibm-1155_P100-1999
x-ibm-1156_P100-1999
x-ibm-1157_P100-1999
x-ibm-1158_P100-1999
x-ibm-1160_P100-1999
x-ibm-1162_P100-1999
x-ibm-1164_P100-1999
x-ibm-1250_P100-1995
x-ibm-1251_P100-1995
x-ibm-1252_P100-2000
x-ibm-1253_P100-1995
x-ibm-1254_P100-1995
x-ibm-1255_P100-1995
x-ibm-1256_P110-1997
x-ibm-1257_P100-1995
x-ibm-1258_P100-1997
x-ibm-12712-s390
x-ibm-12712_P100-1998
x-ibm-1373_P100-2002
x-ibm-1386_P100-2001
x-ibm-16684_P110-2003
x-ibm-16804-s390
x-ibm-16804_X110-1999
x-ibm-25546
x-ibm-33722_P12A_P12A-2009_U2
x-ibm-37-s390
x-ibm-4517_P100-2005
x-ibm-4899_P100-1998
x-ibm-4909_P100-1999
x-ibm-4971_P100-1999
x-ibm-5123_P100-1999
x-ibm-5351_P100-1998
x-ibm-5352_P100-1998
x-ibm-5353_P100-1998
x-ibm-803_P100-1999
x-ibm-813_P100-1995
x-ibm-8482_P100-1999
x-ibm-901_P100-1999
x-ibm-902_P100-1999
x-ibm-9067_X100-2005
x-ibm-916_P100-1995
x-iscii-be
x-iscii-gu
x-iscii-ka
x-iscii-ma
x-iscii-or
x-iscii-pa
x-iscii-ta
x-iscii-te
x-iso-8859-11
x-mac-centraleurroman
x-mac-cyrillic
x-mac-greek
x-mac-turkish
x-mswin-936
x-windows-50220
x-windows-50221
x-windows-874
x-windows-949
x-windows-950
x-windows-iso2022jp

Client Connection Retry Settings

FTP/FTPS/SFTP Client Connection Retry Settings

If a line error occurs during the connection phase, FAILED_RETRY is set and multiple retries are performed.

After a failed connection, FAILED_RETRY is set and several attempts are made.

In case of LS and MKDIR, the following exceptions apply:

  • LS: if there are no files in the selected directory, no errors are generated and the operation terminates successfully.
  • MKDIR: if the directory to create exists, no error is generated and the operation terminates successfully.

PR4 Client Connection Retry Settings

Errors setting FAILED_RETRY if the maximum number of attempts is not reached:

PRIMEUR SPAZIO Errors:

RC_CONNECTION_BROKEN2009
RC_HCONN_ERROR2018
RC_MAX_CONNS_LIMIT_REACHED2025
RC_OBJECT_IN_USE2042
RC_Q_FULL2053
RC_Q_MGR_NOT_AVAILABLE2059
RC_STORAGE_NOT_AVAILABLE2071
RC_Q_MGR_QUIESCING2161
RC_Q_MGR_STOPPING2162
RC_Q_MGR_NOT_ACTIVE2223
RC_POINTER_QSET_NOT_DEFINED3557
RC_DATA_QSET_NOT_DEFINED3558
RC_RST_SESSION_IN_USE5101
RC_NULL_BLOCK_ERROR5520
RC_FILE_IN_USE5555
RC_MAX_Q_FILE_DEPTH_REACHED5560
RC_TIME_OUT5903
RC_SUSPENDED_BY_USER5904
RC_INTERRUPTED_BY_USER5909
RANGE RC EQUIVALENT RC_CONNECTION_BROKEN9000 - 9999

PRIMEUR Data One Errors:

RC_MAX_CONNS_LIMIT_REACHED2025
RC_RST_SESSION_IN_USE5101
RC_SUSPENDED_BY_USER5904
RC_SHUTDOWN_QM9103
RC_COMMUNICATION_SHUTDOWN9157

PR5 Client Connection Retry Settings

Errors setting FAILED_RETRY if the maximum number of attempts is not reached:

PRIMEUR SPAZIO Errors:

RC_CONNECTION_BROKEN2009
RC_HCONN_ERROR2018
RC_MAX_CONNS_LIMIT_REACHED2025
RC_OBJECT_IN_USE2042
RC_Q_FULL2053
RC_Q_MGR_NOT_AVAILABLE2059
RC_STORAGE_NOT_AVAILABLE2071
RC_Q_MGR_QUIESCING2161
RC_Q_MGR_STOPPING2162
RC_Q_MGR_NOT_ACTIVE2223
RC_POINTER_QSET_NOT_DEFINED3557
RC_DATA_QSET_NOT_DEFINED3558
RC_RST_SESSION_IN_USE5101
RC_ACKQ_FULL5252
RC_BLOCK_OR_DATA_LENGTH_ERR5520
RC_FILE_IN_USE5555
RC_MAX_Q_FILE_DEPTH_REACHED5560
RC_TIME_OUT5903
RC_SUSPENDED_BY_USER5904
RC_INTERRUPTED_BY_USER5909
RC_Q_MANAGER_INITIALIZING7950
RC_MEMORY_NOT_AVAILABLE9015
RC_QSHUTDOWN_SPAZIO9102
RC_QSHUTDOWN_QM9103
RC_COMMUNICATION_NOT_ACTIVE9150
RC_COMMUNICATION_ERROR9151
RC_COMMUNICATION_INTERNAL_ERROR9152
RC_COMMUNICATION_TIMEOUT9153
RC_COMMUNICATION_LINE_BUSY9154
RC_COMMUNICATION_NO_TRANS_AVAIL9155
RC_COMMUNICATION_NO_LINE_AVAIL9156
RC_COMMUNICATION_SHUTDOWN9157
RC_COMMUNICATION_PARAM_ERROR9158
RC_COMMUNICATION_REM_TRANS_FAILED9160
RC_SPAM_ERROR9200
RC_NOT_CONNECTED9201
RC_SROPEN_FAILED9202
RC_SECODARY_QM_REMOTE9220

PRIMEUR DATA ONE Errors:

RC_MAX_CONNS_LIMIT_REACHED2025
RC_RST_SESSION_IN_USE5101
RC_FILE_IN_USE5555
RC_SUSPENDED_BY_USER5904
RC_MEMORY_NOT_AVAILABLE9015
RC_QSHUTDOWN_QM9103
RC_COMMUNICATION_ERROR9151
RC_COMMUNICATION_REM_TRANS_FAILED9160

Errors always setting FAILED_RETRY without checking the maximum number of attempts configured:

PRIMEUR Data One and PRIMEUR SPAZIO Errors:

RC_OBJECT_IN_USE2042
RC_FILE_IN_USE5555
RC_NOT_CONNECTED9201
