  1. DATA SHAPER DESIGNER
  2. Transformers

Normalizer

Short Description

Normalizer creates one or more output records from each single input record. Input records do not have to be sorted.

COMPONENT
SAME INPUT METADATA
SORTED INPUTS
INPUTS
OUTPUTS
JAVA
CTL
AUTO-PROPAGATED METADATA

Normalizer

-

x

1

1

✓

✓

x

Ports

PORT TYPE
NUMBER
REQUIRED
DESCRIPTION
METADATA

Input

0

✓

For input data records

Any1

Output

0

✓

For normalized data records

Any2

Metadata

Normalizer does not propagate metadata. Normalizer does not have metadata templates. Normalizer does not require any specific metadata fields.

Normalizer Attributes

ATTRIBUTE
REQ
DESCRIPTION
POSSIBLE VALUES

BASIC

Normalize

[1]

The definition of the way how records should be normalized, written in the graph in CTL or Java.

Normalize URL

[1]

The name of an external file, including the path, containing the definition of the way how records should be normalized written in CTL or Java.

Normalize class

[1]

The name of an external class defining the way how records should be normalized.

Normalize source charset

Encoding of an external file defining the transformation. The default encoding depends on DEFAULT_SOURCE_CODE_CHARSET in defaultProperties.

E.g. UTF-8

DEPRECATED

Error actions

Definition of the action that should be performed when the specified transformation returns some Error code. See Return Values of Transformations.

Error log

The URL of the file to which error messages for specified Error actions should be written. If not set, they are written to Console.

[1] One of these must specified.

Details

Normalizer requires transformation. The transformation can be defined in CTL (see CTL Interface below) or in Java (see Java Interface below). The transformation is defined using several functions. Each of them has its own purpose. The order of function calls is depicted in diagram below.

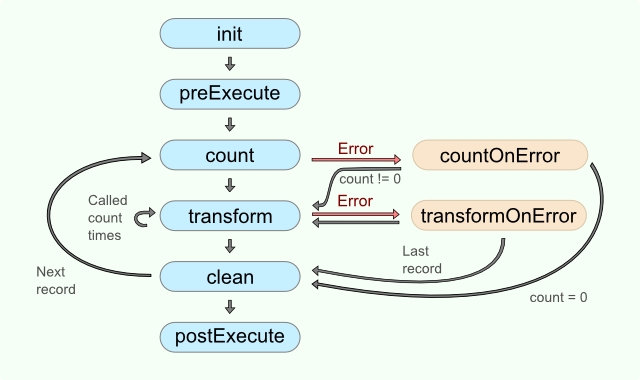

The number of calls of transform() function depends on the result of the count() (or countOnError()) function.

CTL Interface

The transformation written in CTL uses a CTL template for Normalizer. Only the functions count() and transform() are mandatory. Other functions are optional.

Once you have written your transformation, you can also convert it to Java language code using the corresponding button in the upper right corner of the tab.

CTL Templates for Normalizer

CTL TEMPLATE FUNCTIONS

boolean init()

Required

No

Description

Initializes the component, sets up the environment and global variables

Invocation

Called before processing the first record

Returns

true | false (in case of false graph fails)

CTL TEMPLATE FUNCTIONS
integer count()

Required

Yes

Input Parameters

None

Returns

The returned number defines the number of new output records that will be created by the transform() function. If the count() function returns 0, the subsequent call of transform() is skipped (transform() is called zero times).

Invocation

Called repeatedly, once for each input record

Description

For each input record it generates the number of output records that will be created from this input. If count() fails and user has not defined any countOnError(), the whole graph will fail. If any of the input records causes the count() function to fail, and if user has defined another function (countOnError()), processing continues in this countOnError() at the place where count() failed. The countOnError() function gets the information gathered by count() that was received from previously successfully processed input records. Also the error message and stack trace are passed to countOnError().

Example

See here below

function integer count() {
   customers = split($in.0.customers,"-");
   return length(customers);
}

CTL TEMPLATE FUNCTIONS

integer transform()

Required

Yes

Input Parameters

integer idx integer numbers from 0 to count-1 (Here count is the number returned by the count() function.)

Returns

Integer numbers. The number corresponds to the return value of transformation. For detailed information, see Return Values of Transformations.

Invocation

Called repeatedly, once for each output record. The number of calls is defined by return value of function count().

Description

Creates output records. If transform() fails and the user has not defined any transformOnError(), the whole graph will fail. If any part of the transform() function for some output record causes fail of the transform() function, and if user has defined another function (transformOnError()), processing continues in this transformOnError() at the place where transform() failed. The transformOnError() function gets the information gathered by transform() that was received from previously successfully processed code. Also the error message and stack trace are passed to transformOnError().

Example

See here below

function integer transform(integer idx) {
   myString = customers[idx];
   $out.0.OneCustomer = str2integer(myString);
   $out.0.RecordNo = $in.0.recordNo;
   $out.0.OrderWithinRecord = idx;
   return OK;
}

CTL TEMPLATE FUNCTIONS

void clean()

Required

No

Input Parameters

None

Returns

void

Invocation

Called repeatedly, once for each input record. The function is called after the corresponding call(s) of transform() function.

Description

Returns the component to the initial settings.

Example

See here below

function void clean() {
   clear(customers);
}
CTL TEMPLATE FUNCTIONS
integer countOnError(string errorMessage, string stackTrace)

Required

No

Input Parameters

string errorMessage string stackTrace

Returns

The returned number defines the number of new output records that will be created by the transform() function. If the count() function returns 0, the subsequent call of transform() is skipped.

Invocation

Called if count() throws an exception.

Description

For each input record it generates the number of output records that will be created from this input. If any of the input records causes fail of the count() function, and if user has defined another function (countOnError()), processing continues in this countOnError() at the place where count() failed.

Example

See here below

function integer countOnError(
                  string errorMessage,
                  string stackTrace) {
   printErr(errorMessage);
   return 1;
}
CTL TEMPLATE FUNCTIONS
integer transformOnError(string errorMessage, string stackTrace, integer idx)

Required

No

Input Parameters

string errorMessage string stackTrace integer idx

Returns

Integer numbers. For more information, see Return Values of Transformations.

Invocation

Called if transform() throws an exception.

Description

Creates output records. If any part of the transform() function for some output record causes fail of the transform() function, and if the user has defined another function (transformOnError()), processing continues in this transformOnError() at the place where transform() failed. The transformOnError() function gets the information gathered by transform() that was received from previously successfully processed code. Also the error message and stack trace are passed to transformOnError().

Example

See here below

function integer transformOnError(
                  string errorMessage,
                  string stackTrace,
                  integer idx) {
   printErr(errorMessage);
   printErr(stackTrace);
   $out.0.OneCustomerOnError = customers[idx];
   $out.0.RecordNo = $recordNo;
   $out.0.OrderWithinRecord = idx;
   return OK;
}

CTL TEMPLATE FUNCTIONS

string getMessage()

Required

No

Description

Prints the error message specified and invoked by the user.

Invocation

Called in any time specified by the user (called only when either count(), transform(), countOnError(), or transformOnError() returns value less than or equal to -2).

Returns

string

CTL TEMPLATE FUNCTIONS

void preExecute()

Required

No

Input Parameters

None

Returns

void

Description

May be used to allocate and initialize resources required by the transform. All resources allocated within this function should be released by the postExecute() function.

Invocation

Called during each graph run before the transform is executed.

CTL TEMPLATE FUNCTIONS

void postExecute()

Required

No

Input Parameters

None

Returns

void

Description

Should be used to free any resources allocated within the preExecute() function.

Invocation

Called during each graph run after the entire transform was executed.

Access to input and output fields

Input records or fields Input records or fields are accessible within the count(), countOnError(),transform() and transformOnError() functions only.

Output records or fields Output records or fields are accessible within the transform() and transformOnError() functions only.

Warning: All of the other CTL template functions allow to access neither inputs nor outputs. Remember that if you do not hold these rules, NPE will be thrown!

Java Interface

  • boolean init(Properties parameters, DataRecordMetadata sourceMetadata, DataRecordMetadata targetMetadata) Initializes normalize class/function. This method is called only once at the beginning of normalization process. Any object allocation/initialization should happen here.

  • int count(DataRecord source) Returns the number of output records which will be created from specified input record.

  • int countOnError(Exception exception, DataRecord source) Called only if count(DataRecord) throws an exception.

  • int transform(DataRecord source, DataRecord target, int idx) idx is a sequential number of output record (starting from 0). For detailed information about return values and their meaning, see Return Values of Transformations. In Normalizer, only ALL, 0, SKIP, and Error codes have some meaning.

  • int transformOnError(Exception exception, DataRecord source, DataRecord target, int idx) Called only if transform(DataRecord, DataRecord, int) throws an exception.

  • void clean() Finalizes current round/clean after current round - called after the transform method was called for the input record.

Examples

Converting multivalue fields to multiple records

Input records contain group name and list of users of the group. Convert records into tuples having group name and one username.

accounting  | [johnsmith, elisabethtaylor]
development | [georgegreen, janegreen, peterbrown]

Solution Define the transformation using **Normalize **attribute.

//#CTL2

function integer count() {
    return length($in.0.users);
}

function integer transform(integer idx) {
    $out.0.group = $in.0.group;
    $out.0.user = $in.0.users[idx];
    return OK;
}

Normalizer returns following records:

accounting |johnsmith
accounting |elisabethtaylor
development|georgegreen
development|janegreen
development|peterbrown

Best Practices

If the transformation is specified in an external file (with Normalize URL), we recommend users to explicitly specify Normalize source charset.

See also

PreviousMetaPivotNextPartition

Last updated 1 month ago

The transformation implements methods of the RecordNormalize interface and inherits other common methods from the Transform interface. See . Following are the methods of the RecordNormalize interface:

Common Java Interfaces
Denormalizer
Rollup
Common Properties of Components
Specific attribute types
Common Properties of Transformers
Defining Transformations
