  1. DATA SHAPER DESIGNER
  2. Projects

Structure of Data Shaper projects

PreviousConverting Data Shaper projectsNextVersioning of server project content

Last updated 1 month ago

In this chapter, we present only a brief overview of what happens when you are creating any Data Shaper project.

This applies not only to local and , but also to .

  • Each of your Data Shaper Projects has the standard project structure (unless you have changed it while creating the project).

  • This file defines the paths to .class and .jar files that can be loaded and used by transformation graphs.

  • Each of your local or remote (Server) Data Shaper projects contains the workspace.prm file (in the project folder) with basic information about the project.

Standard Structure of All Data Shaper Projects

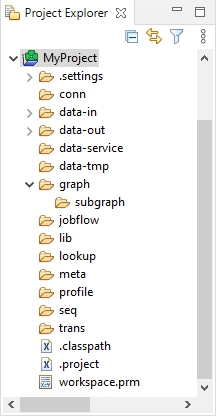

In the Data Shaper perspective, there is a Project Explorer pane on the left side of the window. In this pane, you can expand the project folder. After that, you will be presented with the folder structure. There are subfolders for:

PURPOSE
STANDARD FOLDER
STANDARD PARAMETER
USAGE (*)

all connections

conn

CONN_DIR

${CONN_DIR}

input data

data-in

DATAIN_DIR

${DATAIN_DIR}

output data

data-out

DATAOUT_DIR

${DATAOUT_DIR}

data service REST job - not used in this version

data-service

DATASERVICE_DIR

${DATASERVICE_DIR}

temporary data

data-tmp

DATATMP_DIR

${DATATMP_DIR}

graphs

graph

GRAPH_DIR

${GRAPH_DIR}

subgraphs - not used in this version

graph/subgraph

SUBGRAPH_DIR

${SUBGRAPH_DIR}

jobflows (*.jbf) - not used in this version

jobflow

JOBFLOW_DIR

${JOBFLOW_DIR}

libraries

lib

LIB_DIR

${LIB_DIR}

lookup tables

lookup

LOOKUP_DIR

${LOOKUP_DIR}

metadata

meta

META_DIR

${META_DIR}

profiling jobs (deprecated)

profile

PROFILE_DIR

${PROFILE_DIR}

sequences

seq

SEQ_DIR

${SEQ_DIR}

transformation definitions (both source files and classes)

trans

TRANS_DIR

${TRANS_DIR}

Warning!

Remember that using parameters in Data Shaper ensures that such a graph, metadata or any other graph element can be used in any place without need of being renamed.

The .classpath File

The .classpath file defines the paths to .class and .jar files that can be loaded and used by transformation graphs.

The following configuration is reported as warning.

References to nearby projects (configured in Project > Properties under Java Build Path).

Usage of non-standard classpath containers (Project > Java build path under Libraries > Add Library).

Usage of classpath variables (Project > Java build path under Libraries > Add Variable)

Usage of non-standard output folder. The trans is only accepted value.

If a classpath in a remote project contains reference to other sandbox, a warning on project level is displayed.

Workspace.prm File

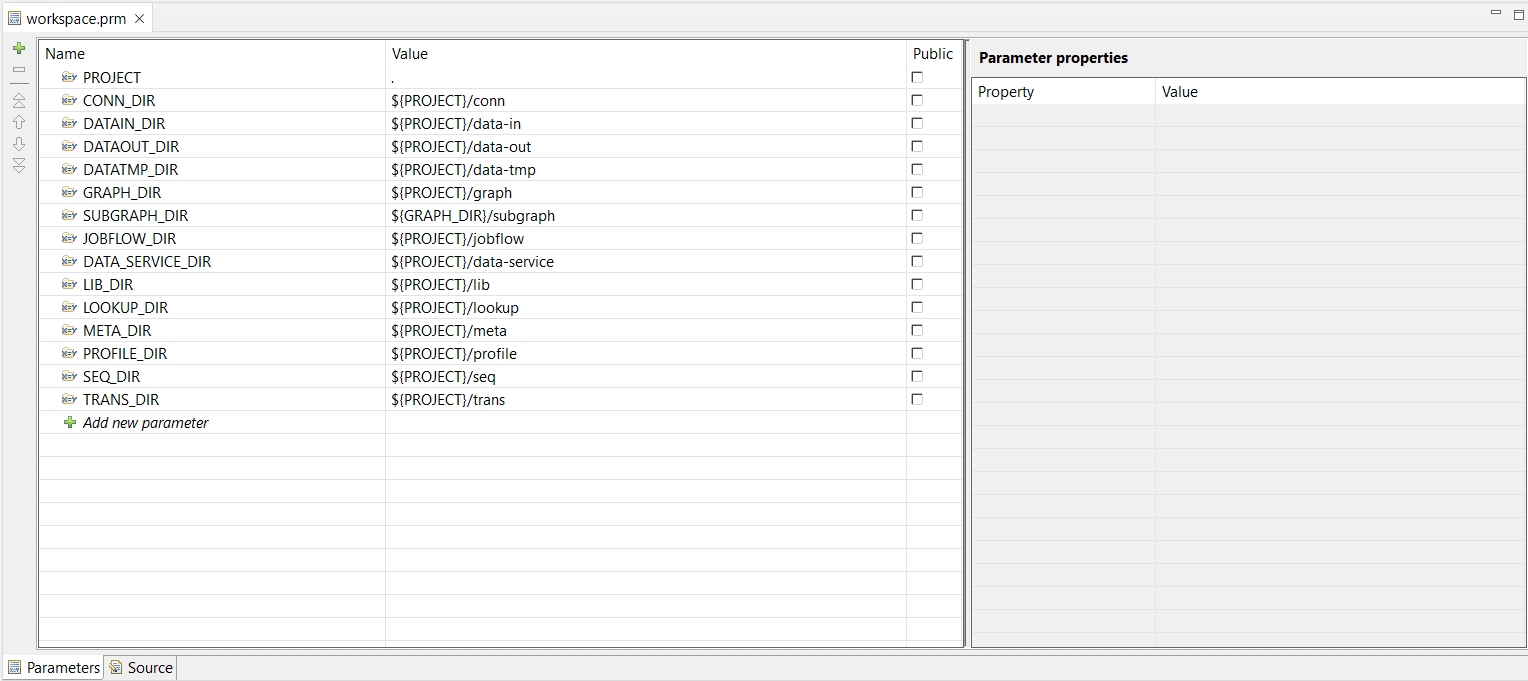

You can look at the workspace.prm file by clicking this item in the Project Explorer pane and right-clicking and choosing Open With > Data Shaper Parameters Editor from the context menu.

You can see the parameters of your new project.

Note

The parameters of imported projects may differ from the default parameters of a new project.

Not all directories listed on this page are used in this version of Data One.

(*) For more information about parameters, see , and about their usage, see .

Parameters
Using Parameters
Data Shaper Server Project
Standard Structure of All Data Shaper Projects
The .classpath File
Workspace.prm File
Data Shaper Project
Data Shaper Examples Project
